Effect of Grinding Wheel

Grinding wheel continues with an infinite number of hard, sharp and refractory grits on edge surface at a high speed of swing operation to cut and grind over the surface of work piece, and unceasing self-sharpening grains and pore continue to grind a tool for every kind of material.

The Construction of Grinding Wheels

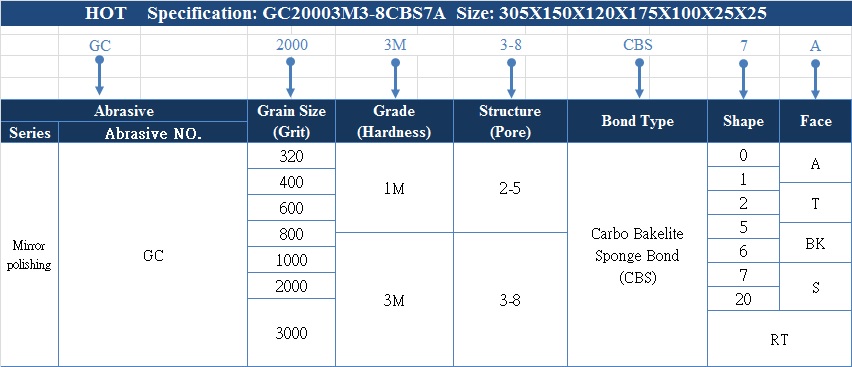

Wheel Label and Ordering Information

Standard Shape and Face

(A)Standard Shape

Indicates the grinding face of bonded abrasive products

Indicates the grinding face of bonded abrasive products

TYPE 1 : DXTXH

TYPE 2 : DXTXW

TYPE 3 : DXTXHXJXU

TYPE 4 : DXTXHXJXU

TYPE 5 : DXTXHXPXE

TYPE 6 : DXTXHXWXE

TYPE 7 : DXTXHXPXEXFXG

TYPE 8 : DXTXHXPXFXGXJXM

TYPE 9 : DXTXHWXEXFXG

TYPE 10 : DXTXHXJXMXU

TYPE 11 : DXTXHXWXEXJXK

TYPE 12 : DXTXHXEXJXKXUXA

TYPE 13 : DXUXH

TYPE 14 : DXTXHXJXKXMXmXUXE

TYPE 16 : DXTXH

TYPE 20 : DXTXHXNXKXA

TYPE 21 : DXTXHXNXOXKXA

TYPE 22 : DXTXHXNXFXKXPXA

TYPE 23 : DXTXHXNXFXPXA

TYPE 24 : DXTXHXNXFXGXPXA

TYPE 25 : DXTXHXNXFXOXKXPXA

TYPE 26 : DXTXHXNXFXGXOXPXA

TYPE 101 : DXTXHXJXMXU

TYPE 201 : DXTXHXNXJXAXE

TYPE 212 : DXTXHXNXOXJXAXE

TYPE SG : TXA/axW

TYPE RT : TXAXW

(B)Standard Face

A

B

C

D

E

F

G

H

I

J

K

L

M

N

P

(C)Other Shape

Cones & Plugs Type Grinding Wheels: Marking “SUED”
Rice Mill Grinding Wheels: General Type “MIL”, Special Type Marking “MSP”
Valve Seat Grinding Wheels: Marking “VLVST”
Special Shape: Marking “SP”
Stones Special for Polishing Marble & Tile:
Commas (O) Plate:  255x50x50 Marking “O”
Comma / Kidney (S) Type:  Marking “S”
Fickert (A) Type Brick: Marking “A”
Frankfurt (H) Type: Marking “H”

(D)Shape of Mounted Wheels

A Group: Different Shape
B Group: Smaller outside diameter below 3/4″ different Shape
W Group: All straight shape mounted wheels
AJ Group: Extended shape & size of A group
BJ Group: Extended shape & size of B group
Others: SF, K, L group and other special specification mounted wheels

(E)Super Finishing Stones for Cylinder Honing Mould & Turning Tool Finishing

Square: Marking “SQ”
Rectangle: Marking “RT”
Round: Marking “RD”
Half Round: Marking “HR”
Triangular: Marking “TR”
Curved Square: Marking “HN”
Special Shape: Marking “ST”
